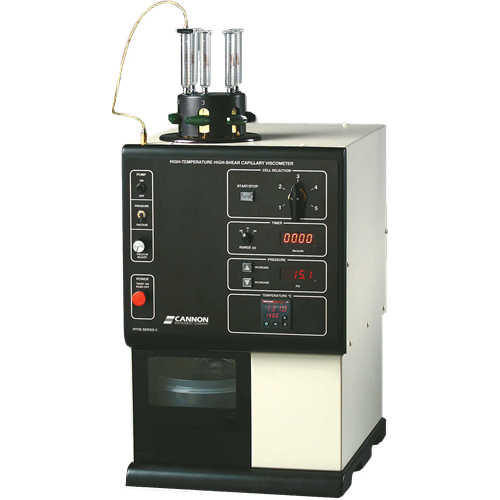

CANNON HTHS Series II High-Temperatue, High-Shear ViscometerCANNON HTHS Series II High-Temperatue, High-Shear Viscometer

HTHS Series II High-Temperatue, High-Shear Viscometer

CANNON product

The HTHS Series II is a multicell capillary viscometer for simple viscosity testing of engine oils at high temperature and high shear. It meets all requirements and precision specifications of ASTM D5481 and SAE J300.

Contact
Category: Tag:

Description

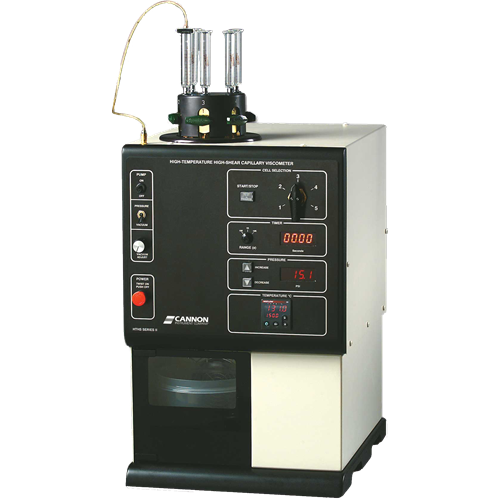

The CANNON High-Temperature High-Shear Capillary Viscometer (HTHS Series II) is designed to determine the viscosity of engine oils and other oils under conditions of high shear at high temperatures. The HTHS is capable of testing at 1.4 x 1.000.000s-1 at 150°C and meets all precision specifications of ASTM D 5481 and SAE J300.

The Series II design incorporates simple one-button operation, just load samples, set pressure, and press the Start button. The reduced operator role enhances repeatability and reproducibility. If desired, variable shear rates (± 30 percent of the shear rate specified in ASTM D 5481) may be obtained by altering the test pressure (variable from 75 to 500 psi). The viscosity range of 2-7 mPa can be extended to more than 20 mPa with custom configuration.



Common Applications

  • Elastomers
  • Plastics
  • Thermoplastic elastomers
  • Copolymers
  • Biopolymers
  • Polymer blends
  • Oligomers
  • Pre-polymers
  • Resins
  • Viscosity modifiers

Additional information

Applications

Residual Fuel
Brands

CANNON

Features & Benefits

Meets all ASTM D5481 and SAE J300 requirements and precision specifications

  • Temperature range: 30 °C to 150 °C (± 0.1 °C)
  • Viscosity range: 2 mPa·s (cP) to 7 mPa·s (cP)*
  • Test pressure: variable from 75 psi to 500 psi
  • Variable test temperature and shear rate supports research applications

User-friendly, high speed testing

  • Simple, one-button operation
  • Multi-cell design permits sequential testing of up to 5 different samples
  • Tests up to 20 samples per hour at 1.4 × 106s-1 at 150 °C
  • Instrument digitally displays flow time, temperature and pressure
  • Stand-alone viscosity calculation software analyzes data and displays results
  • Sample flush cycle eliminates need for hazardous cleaning solvents

Robust, reliable performance

  • Proven CANNON® reliability and outstanding support
  • Reduced operator role enhances repeatability and reproducibility

*Viscosity range is extendable to 20 mPa·s (cP) with custom configuration
